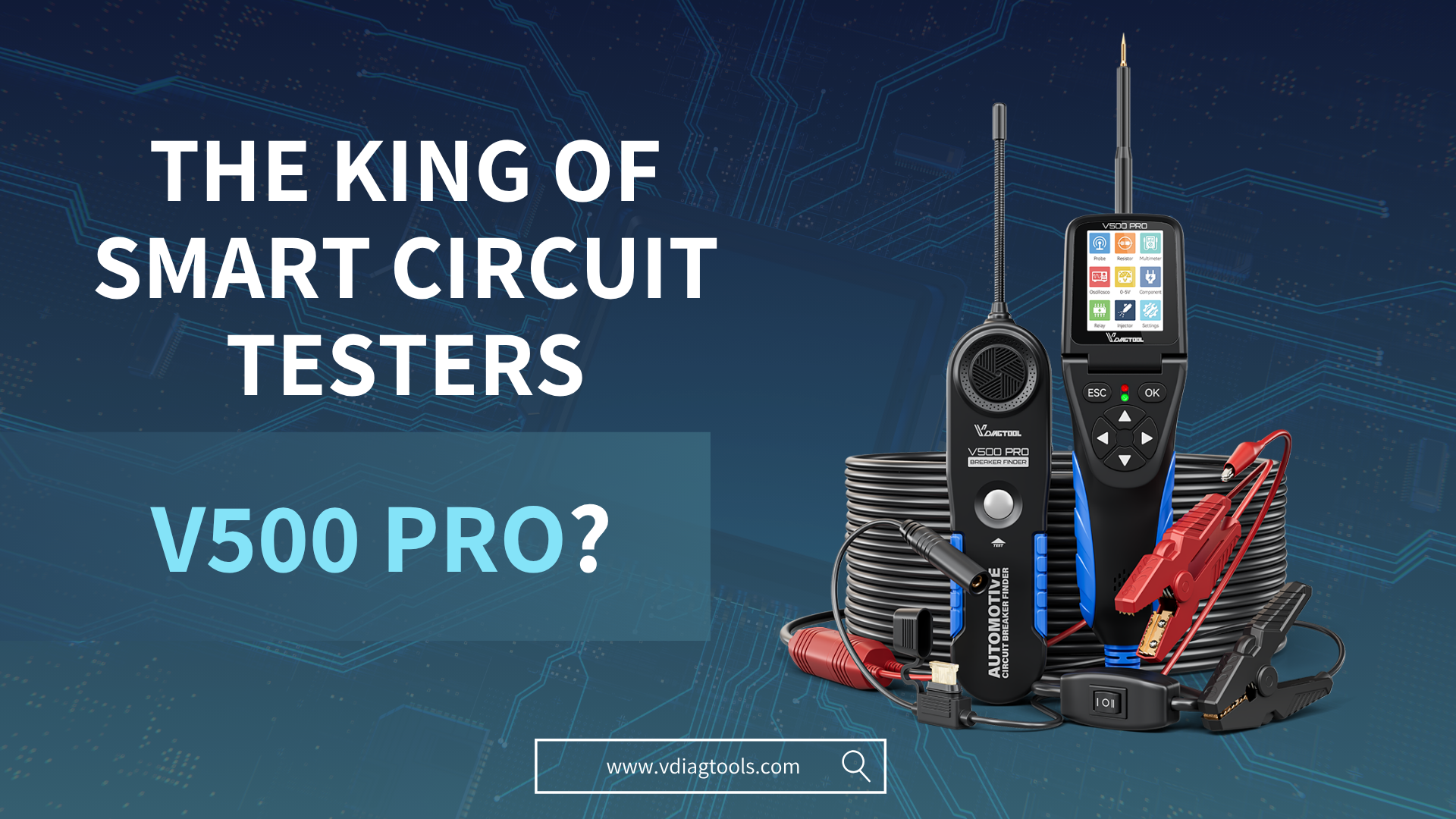

Recently, VDIAGTOOL V500 Pro has been gaining popularity among automotive technicians and DIYers alike. This all-in-one circuit tester is designed for a wide range of electrical diagnostics, including component activation and signal circuit testing and more. With advanced testing capabilities, real-time feedback, multifunctional features, and a rugged design — is this the smart tester you’ve been looking for?
Let’s take a closer look at what makes the V500 Pro stand out.
Design & Build Quality
2025 VDIAGTOOL V500 Pro is the ultimate all-in-one tool for testing any circuit with precision and ease. Combining the features of the V500 (Mode 1) and V210 (Mode 2), it covers everything from Circuit Breaker Tests and Voltage Testing to Component Activation and Oscilloscope Mode. Designed to save time and money, the V500 Pro is the ideal solution for automotive professionals and enthusiasts!
Performance & Highlights
⭐VDIAGTOOL V500 Pro MODE 1：
➤Oscilloscope Function: Oscilloscope mode provides real-time waveform display, helping users quickly identify issues like signal distortion, voltage spikes, and interference. It captures transient and repetitive faults that static tools may miss, and supports frequency analysis for precise debugging of oscillation, clock, or communication circuits.
➤Multimeter Mode: The multimeter in the VDIAGTOOL V500 Pro intelligent circuit probe detector is mainly used to measure basic parameters such as voltage, current, resistance, etc. in the circuit, and has a wide measurement range:
✔️Voltage Test: 0.1-100V
✔️Resistance Test: 0KR-200KR
✔️Current Test：2mA-25A
✔️Frequency Test: 10Hz-1MHZ
✔️Oscilloscope:10Hz-100KHZ
➤Relay Test: Relay testing is the process of checking the function and performance of a relay to ensure that it works properly in the circuit. Testing the relay's coil voltage, resistance, contact status, etc. Makes it possible to diagnose whether the relay is damaged or failed, which is crucial to maintaining the reliability and safety of the electrical system. Common relay tests include:
✔️ Voltage test
✔️ Coil resistance test
✔️ Relay action test
✔️ Relay delay and retention test.
🚩Practical design:
90° rotating screen: The main screen of VDIAGTOOL V500 Pro circuit diagnostic tool can be rotated 90°. No matter from which angle, you can observe the circuit data on the screen 360° without blind spots so that you can focus on analyzing circuit faults.
Built-in flashlight: The V500 Pro has a built-in flashlight, which makes it convenient to perform circuit diagnosis in dark environments.
Click here to learn more
⭐VDIAGTOOL V500 Pro MODE 2 Breaker Finder：
✔️Locate Open Circuits
✔️Wire Tracing
✔️ Check Short Circuits
After the V500 Pro was launched for a while, ELECTRÓNICA NÚÑEZ TUTORIALES finally reviewed this circuit probe tester, and we can learn more from his review.
Final Verdict
VDIAGTOOL V500 Pro strikes the perfect balance between performance and value. It may not be the most high-end device out there, but for most technicians and DIYers, it delivers everything you need—and more. With powerful features, real-time diagnostics, and a user-friendly design, the V500 Pro is a smart investment for anyone serious about automotive circuit testing.
Find the V500 Pro and other Auto Diagnostic Scanner Tools at vdiagtools.com.
