V200 Power Circuit Probe Tester Do More Than A Multi Meter
VDIAGTOOL V200:
VDIAGTOOL V200 is the must-have tool for any automotive electrical system!
- Versatile Functionality: It handles everything from wire tracing to signal circuit testing.
- Safe and Reliable: Built-in circuit breaker protection ensures your vehicle’s safety.
- Effortless Reach: With its 40ft extension cord, no circuit is out of bounds.
- Activate Components Instantly: Relays, fuses, trailer lights—test them in seconds.
- Diagnose and repair confidence, whether in the shop or on the go.
V200 Electrical System Circuit Tester Features:
🚘4 test modes: DC voltage, AC voltage, resistance test, diode test
🚘DC voltage range: 0-65V; resistance range: 0-100 kΩ; rated current: 1-10 amps; frequency response of sound channel: 0Hz to 10Khz.
🚘Quick self-test: Before testing a circuit or component, ensure your tool is in good condition with a quick self-test.
🚘Component activation: To troubleshoot electrical faults, the component activation function generates an activation signal to the tested component (such as car lights, motors, windshield wipers).
🚘Current overload protection: The V200 circuit tester has a short circuit protection function. If the internal circuit breaker is overloaded, it will trip.
🚘Quickly identify polarity: The V200 car probe tester can easily check component continuity and identify positive, negative， and open circuits.
🚘Built-in light: Let you work more safely in the dark.
🚘20ft Extension Cord: Covering from the front to the back of the vehicle, you can easily check the entire circuit system.
4 Operating Modes:
✔DC Voltage: When the V200 Voltage Detector is in this mode, touch the probe tip to the circuit, and then the LCD will read the DC voltage with a resolution of 0.1 volts.
✔AC Voltage: When the Circuit Tester V200 is in this mode, touch the probe tip to the circuit, and then the LCD will read the maximum voltage, minimum voltage, and frequency.
✔Resistance Test: When the Vdiagtool V200 is in this mode, touch the probe tip to the circuit, then the LCD will read the resistance between the tip and the auxiliary ground lead.
✔Diode Test: In this mode, the probe tip touches the anode of the diode, connects the auxiliary ground lead to the cathode of the diode, and the screen will display the forward voltage drop, indicating forward bias. If the probe tip and auxiliary ground lead are switched, the screen will not display the voltage, indicating reverse bias.
Quick Self-Test:
Before testing a circuit or component, do a quick self-test to ensure the tool is in good condition.
Polarity Identification:
VDIAGTOOL V200 automotive probe tester can easily check component continuity and identify positive, negative, and open circuits. If the probe tip is connected to the positive pole, the red LED will light up and a beep will sound; if the probe tip is connected to the negative pole, the green LED will light up and a low tone will sound. When there is an open circuit, neither LED will light up. You can also use this circuit tester to find shorts in your car if the fuse keeps blowing.
Vehicle Starting Components:
VDIAGTOOL V200 Automotive Probe Tester can easily check component continuity and identify positive, negative, and open circuits. If the probe tip is connected to the positive terminal, the red LED will light up and a beep will sound; if the probe tip is connected to the negative terminal, the green LED will light up and a low tone will sound. When there is an open circuit, neither LED will light up. You can also use this circuit tester to find short circuits in your car if the fuse keeps blowing.
Two charging modes:

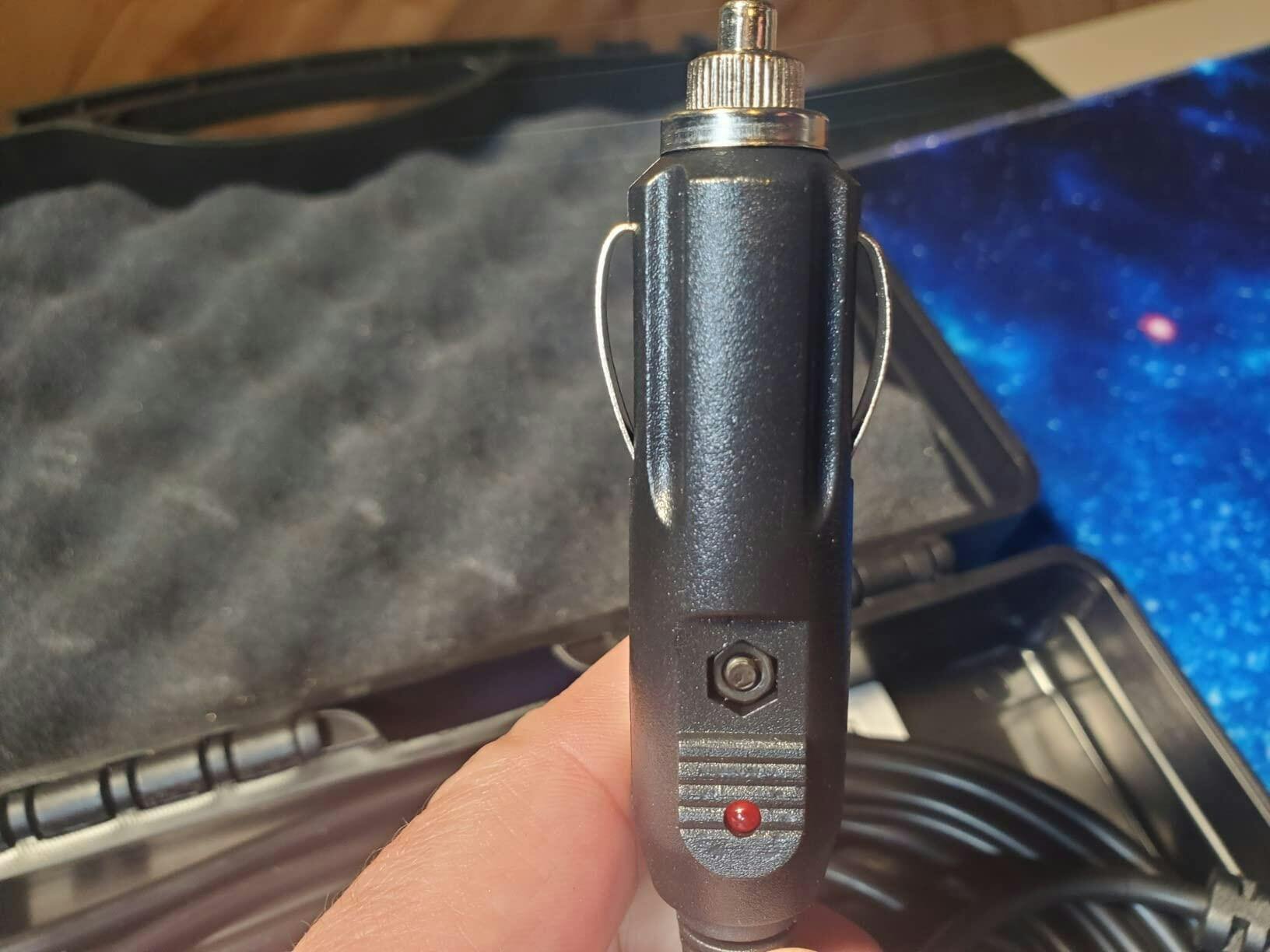

VDIAGTOOL V200 circuit tester is powered by a vehicle battery and cigarette lighter.
What's in the box
Circuit Probe Tester; Extension Cable; Cigarette lighter adapter; User Manual
Couldn't load pickup availability
Description
Description
V200 Electrical System Circuit Tester Features:
🚘 4 Test Modes: DC Voltage, AC Voltage, Resistance, and Diode Test.
🚘 Wide Testing Range: DC Voltage (0-65V), Resistance (0-100kΩ), Rated Current (1-10A), Frequency Response (0Hz - 10kHz).
🚘 Quick Self-Test: Ensure your tool’s functionality before use with a fast self-test.
🚘 Component Activation: Activate car lights, motors, and other components to troubleshoot electrical faults.
🚘 Overload Protection: Built-in short circuit protection automatically trips when overloaded to ensure safety.
🚘 Polarity Detection: Easily identify positive, negative, and open circuits with clear continuity checks.
🚘 Built-in Light: Work safely in low-light conditions with an integrated flashlight.
🚘 20ft Extension Cord: Reach every part of your vehicle’s electrical system for comprehensive testing.
why is Vdiagtool V200 the must-have tool for you?
why is Vdiagtool V200 the must-have tool for you?
The Vdiagtool V200 Electrical System Circuit Tester is the ultimate diagnostic tool for anyone working on car electrical systems. With 4 essential test modes—DC voltage, AC voltage, resistance, and diode test—it ensures you can tackle a wide range of electrical issues. Its quick self-test feature allows you to check the tool’s condition before every use, while the component activation function helps you troubleshoot by sending activation signals to components like lights, motors, and wipers.
Safety is a top priority with overload protection, and it’s designed to handle short circuit situations with ease. The V200 is also built to simplify your work with polarity detection to quickly identify positive, negative, and open circuits. The built-in light lets you work in dimly lit areas, and the 20ft extension cord makes it easy to access every part of the vehicle. Whether you’re a DIY enthusiast or a professional technician, the V200 provides the versatility, safety, and accuracy you need for flawless electrical diagnostics.
Delivery and Shipping
Delivery and Shipping
- Tax Free
- 2 Year Warranty
- lifetime technical support.
- Money-back guarantee
- Free Shipping
- 2-5 Days Fast Shipping
Share this product
FAQ
What can VDIAGTOOL V200 automotive electric circuit tester do for you?
What can VDIAGTOOL V200 automotive electric circuit tester do for you?
Powered by the vehicle's battery or cigarette lighter, the V200 features 4 working modes, making it ideal for polarity testing, continuity testing, component activation testing, signal circuit testing, trailer light testing, short circuit testing, and AC pulse width testing.

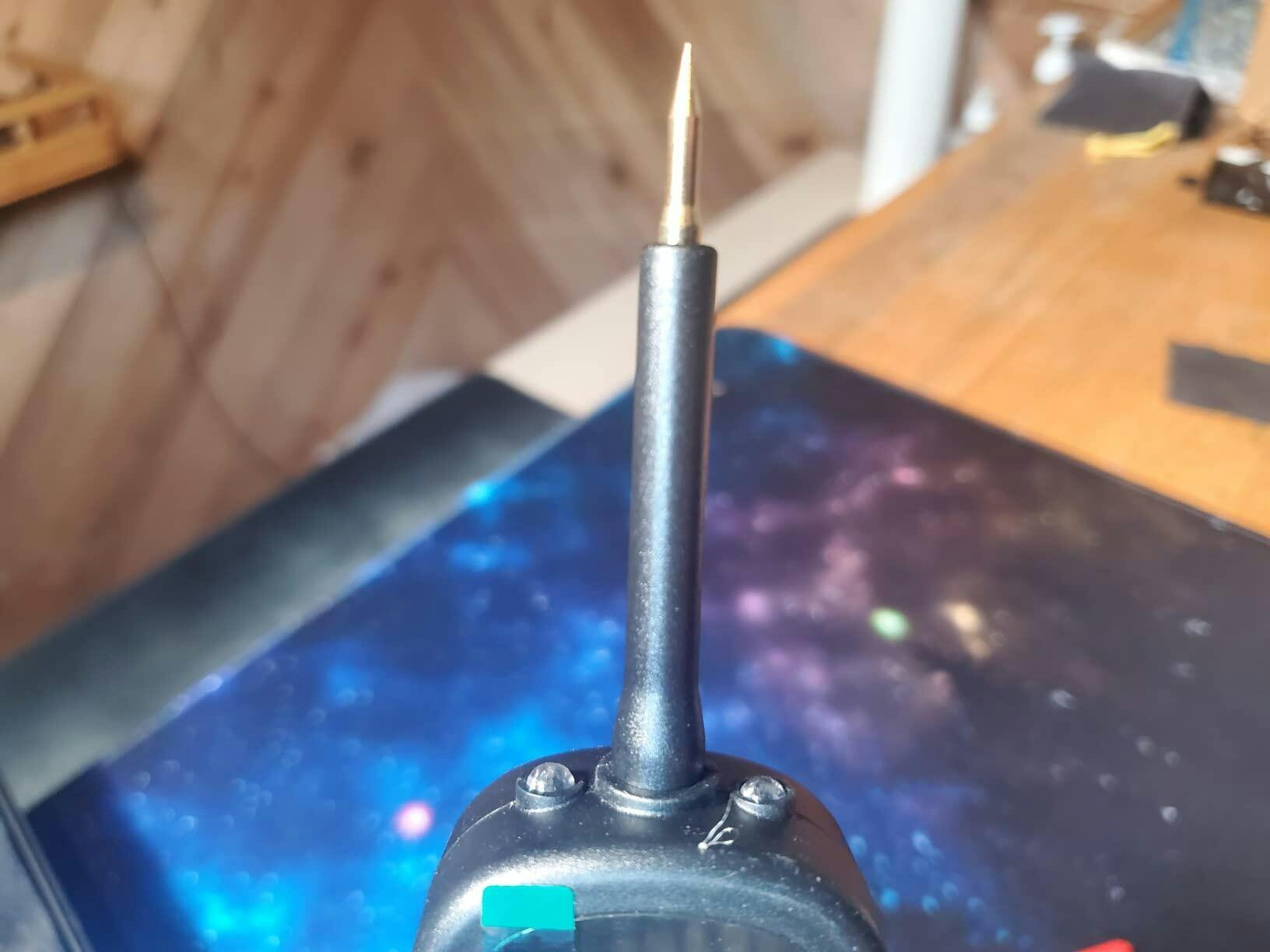

Where can I find the probe tip?
Where can I find the probe tip?
We keep the probe above the back of the device. (Warm note: Be more careful when operating because of the sharp probe tip.)
Where can I get training videos?
Where can I get training videos?
You can learn by browsing the video on the page or the YouTube via searching VDIAGTOOL V200.
What do I do if my VDIAGTOOL V200 Cirtur Probe Tester is broken?
What do I do if my VDIAGTOOL V200 Cirtur Probe Tester is broken?
If it is broken, we wll send a new product to you without return. We offer One Year War ranty and Lifetime Af ter-s ale service.
Customer Reviews
Well!
Does everything you need it to. Easy to use once you get the hang of it.
The Automotive Circuit Probe Tester by Vdiagtool, is a great tool to have in your box, with features and performance like the name brands, but at a discount. Here are some of the things I've learned while owning it and things to consider before buying.
I. Quality: The unit itself feels like good quality materials that should last for a while, assuming the electronics survive. The case is a little cheap, but at least it has one. It looks and feels like the name brand version, but without the branding.
II. Performance worked really good so far, performing on the level with the name brands. I really like having a 20ft cable, so I can reach so many parts of my vehicles and RV easily and without reconnecting the power. The cables are strong and stay connected well. Having the ability to send power to a part with a button, is very helpful to see if its failed.
If you're find it helpful to see an up-close visual inspection of this product, I recommend you watch my included video in full screen or landscape. They say a picture is worth a 1000 words, well it's a video!
You can trust that this review is simply my honest opinion that is attempting to provide you with helpful insight that I wish I had before I picked this product. Hopefully it was helpful in your decision.

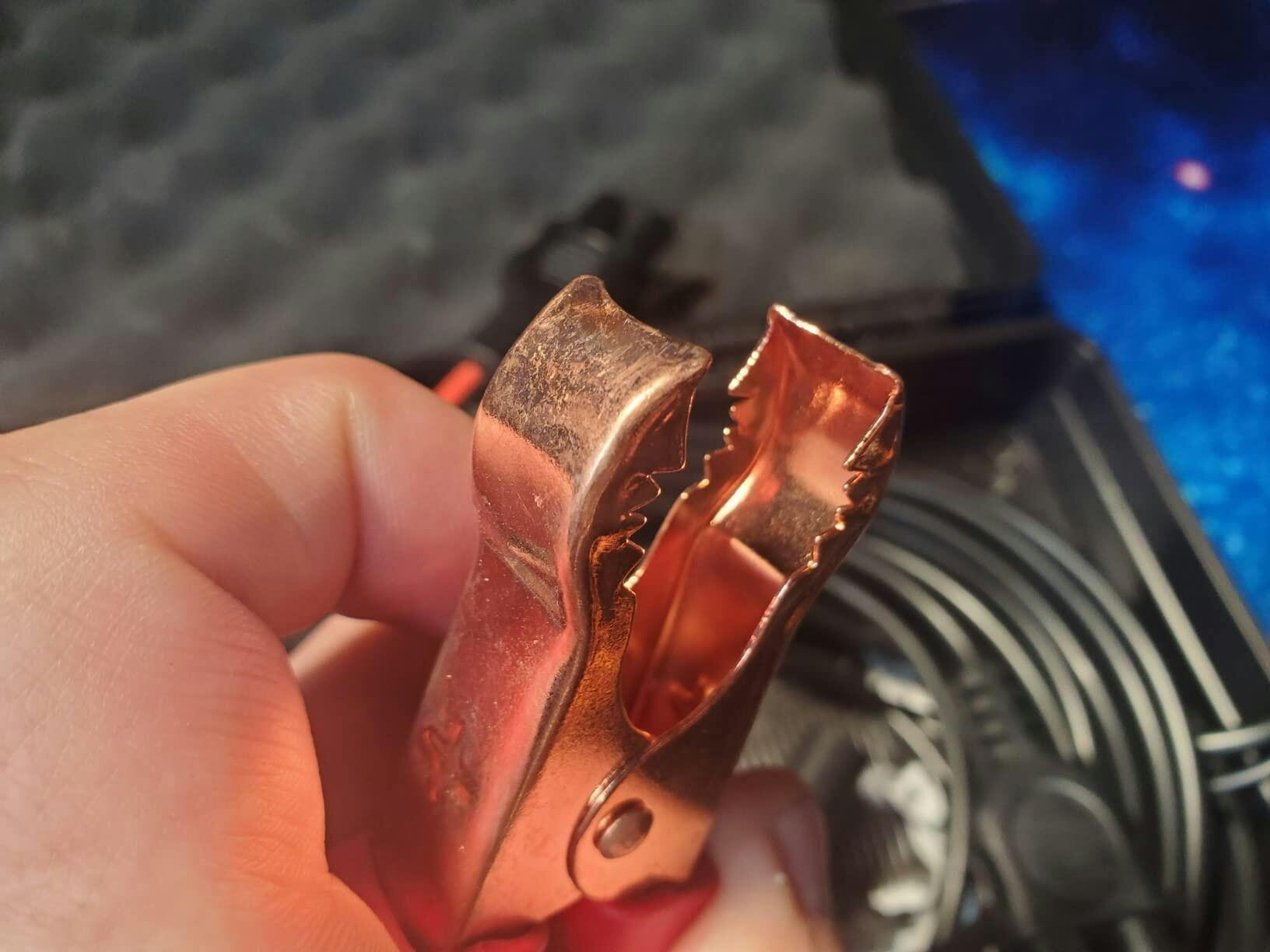

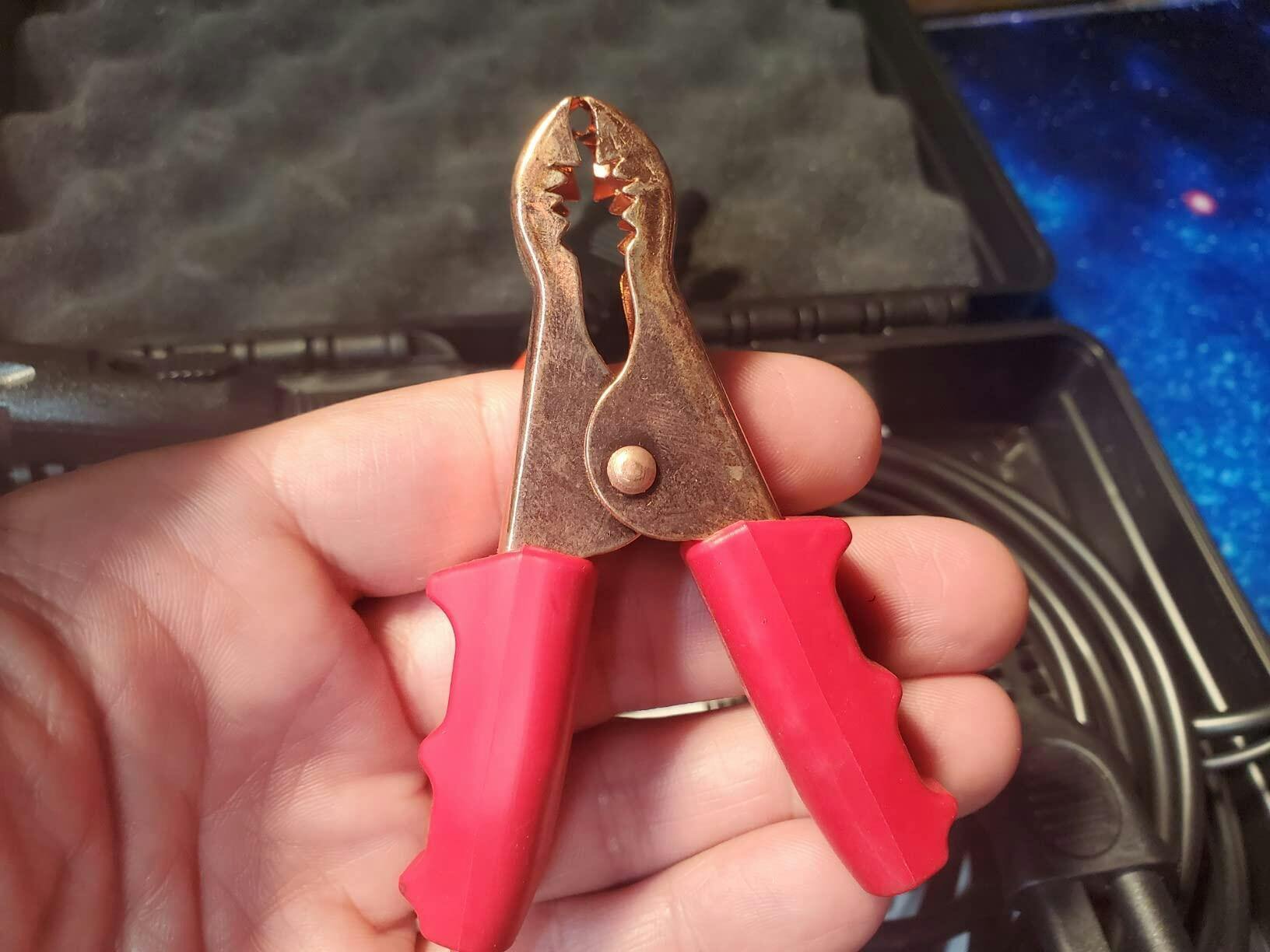

If you're a professional auto technician, you won't have a problem spending tool-truck money on the name brand tool for this. But, if you're a do-it-yourselfer, or casual mechanic, this tool is perfect for you. The kit includes a sort of flimsy plastic case, but if you don't abuse it or drop it too much, it should be OK. The tool itself seems to be well designed and pretty well constructed. The included cable accessories make it easy to use this probe from one end of a vehicle or trailer to the other without having to find an alternate power source or move the clamps. Be sure to read the instruction manual a couple of times before you use the tool, to get the most out of it. There are a couple of handy functions, but if you're not sure how they work, you may not even know what the tool is telling you. Even if you just grab it out of the box, hook it up to 12v and start probing, you'll be able to figure out most of it- but reading the manual truly will help.
I got this for our son to use when he works on our vehicles. This is what he had to say about it.
This circuit tester comes in a nice plastic case with foam padding to prevent it from rattling around during transport. The tester itself is light-weight, but feels sturdy.
There are two LED lights near the tip which are handy for seeing what you are doing when working under car dashes or in other poorly lit areas. You can tell with a quick glance if the circuit you are probing is positive or negative as the display will turn red for positive and green for negative as well as beep.
Four modes are available:
1.) DC voltage -shows the voltage of the circuit being tested and lets you apply power or ground.
2.) AC voltage/Frequency -can be used to test signal output on components like wheel speed sensors.
3.) Resistance/continuity - test resistance up to 100kOhms.
4.) Diode testing - checks which way is forward bias and shows voltage drop.

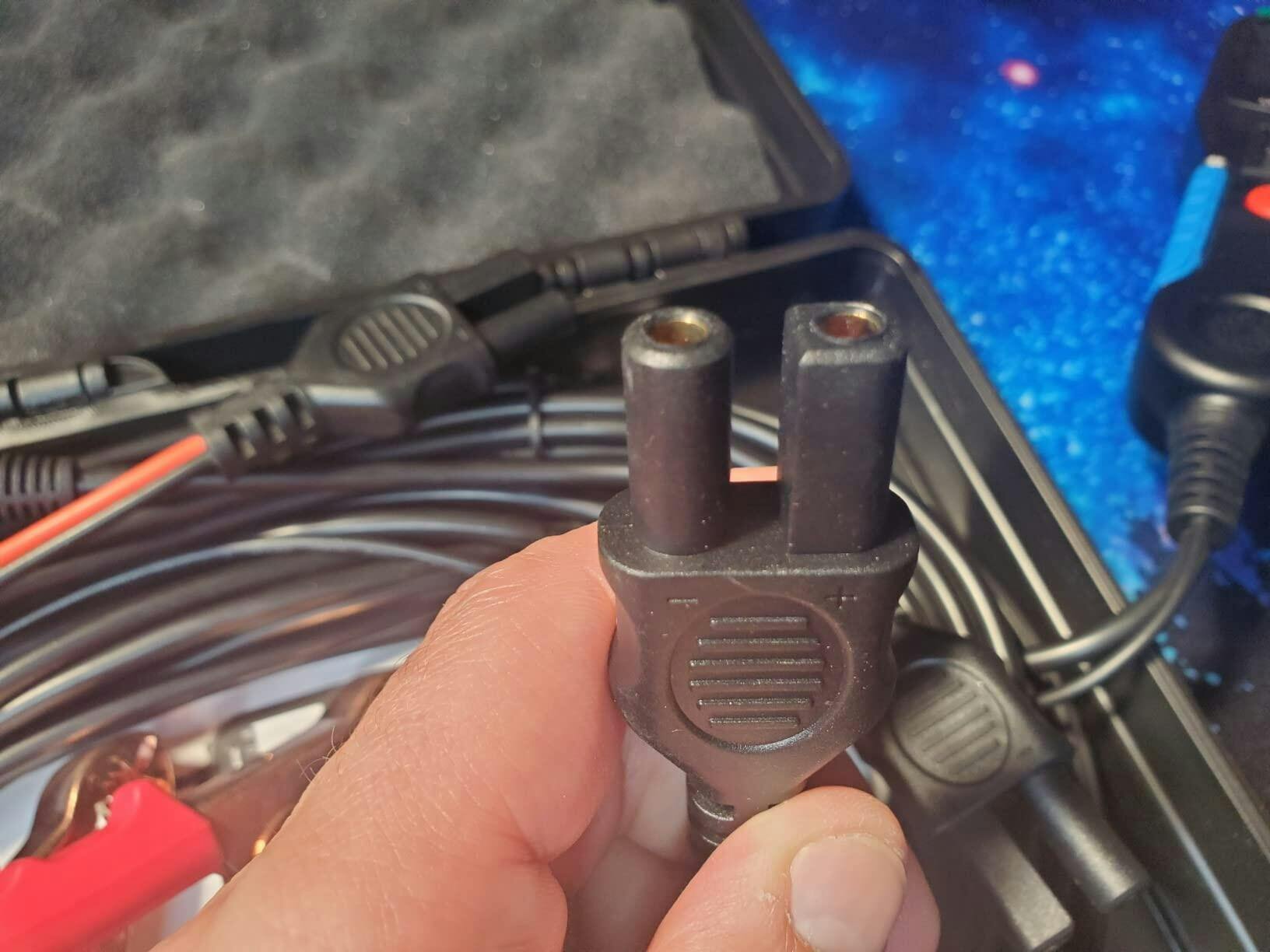

The manual is well written and gives basic examples of how to use each of the modes. The included twenty foot extension for the power leads is handy for larger trucks and checking trailer wiring.
